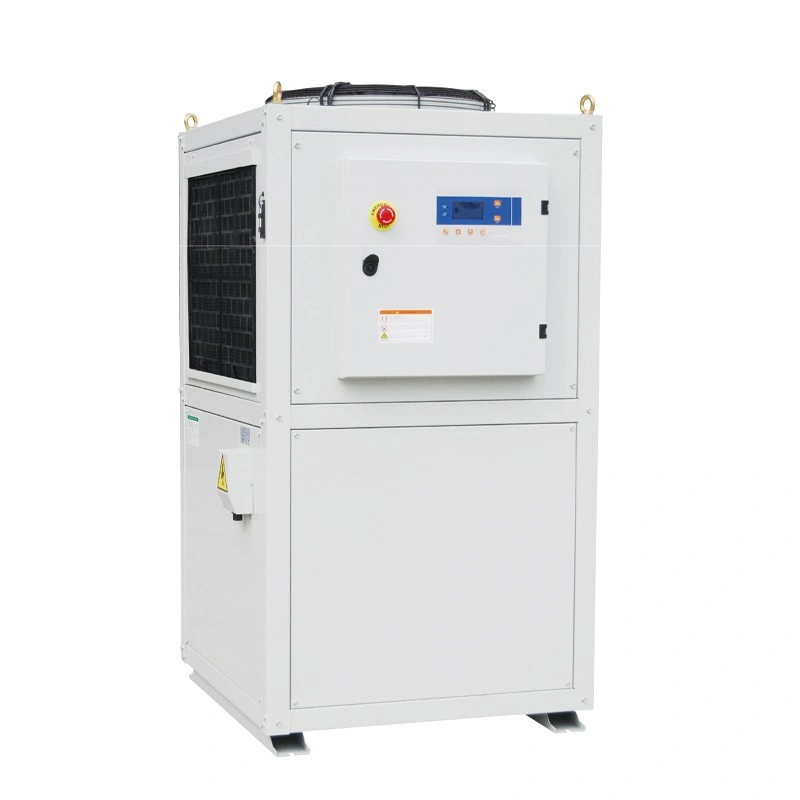

KCOC 3.7-15P Oil Chiller

Specification & Technical Parameters:

Model			KCOC-3.7P	KCOC-5P	KCOC-6P	KCOC-8P	KCOC-10P	KCOC-12P	KCOC-15P
Cooling capacity	(kcal/h)		8000	12000	15000	18000	25000	30000	40000
	(W)		9300	14000	17400	20900	29000	35000	46500
Oil temperature range	℃		Temperature-fixed type: adjustable from 20 to 50℃; Room temperature-adjustable type: room temperature ± ΔT (ΔT = 1~3℃)
Usage conditions	Environmental requirements	℃	5~43℃, well-ventilated, free from dust and corrosive mists, protected from direct sunlight and rain, heat radiation, and vibration.
	oil temperature	℃	15~50
	Oil types		Hydraulic oil, lubricating oil
	oil viscosity	Cst	20~100
Main power supply		V	3PH/AC380V±10%/50Hz
Oil-free pump input power		kW	3.6	5.1	6.3	7.5	10	12	15
Oil pump input power		kW	5.1	6.6	8.5	9.7	13	15	19
Input current for oil pump		A	11	13.5	16	18	26	28	37
compressor input power		kW	3.4	4.6	5.8	6.8	9.2	11.1	12.9
oil pump	Input power	kW	1.5	1.5	2.2	2.2	3	3	4
	flow	L/min	50	50	63	80	100	115	160
Interface dimensions (internal thread)		inch	G1″×1″	G1″×1″	G1¹/₄“×1¹/₄“	G1¹/₄“×1¹/₄“	G1¹/₂“×1¹/₂“	G1¹/₂“×1¹/₂“	G2″×2″
External pipe inner diameter		mm	DN25	DN25	DN32	DN32	DN40	DN40	DN50
External dimensions	Width	mm	700	700	800	800	880	930	970
	thick	mm	750	750	850	850	970	1050	1200
	high	mm	1300	1300	1420	1500	1650	1750	1880
weight		kg	150	180	220	280	350	400	600
Fuel tank dimensions	Width	mm	700	700	800	800	/	/	/
	thick	mm	750	750	850	850	/	/	/
	high	mm	1550	1550	1670	1750	/	/	/
fuel tank capacity		L	100	100	130	130	/	/	/
fuel tank weight		kg	180	210	255	315	/	/	/
refrigerant		R410A
Protective devices		Refrigerant high/low voltage protection, overload/short circuit/delay protection, power phase loss/reverse phase protection.

Notes:

• Cooling capacity refers to the cooling output under the conditions of an ambient temperature of 35℃, an inlet oil temperature of 40℃, and the use of 32# hydraulic oil;
• This series of units includes two models: Fixed Temperature Type A and Room Temperature Adjustable Type B, for users to choose from;
• This series of units includes three models: Without Pump and Without Oil Tank, With Pump but Without Oil Tank (Type P), and With Pump and With Oil Tank (Type PX), for selection only;
• The lower limit temperature for both the Fixed Temperature Type and the Room Temperature Adjustable Type is 15℃;
• During installation, a space of at least 80cm must be maintained at the air intake, and a space of at least 200cm must be maintained at the hot air exhaust outlet.
