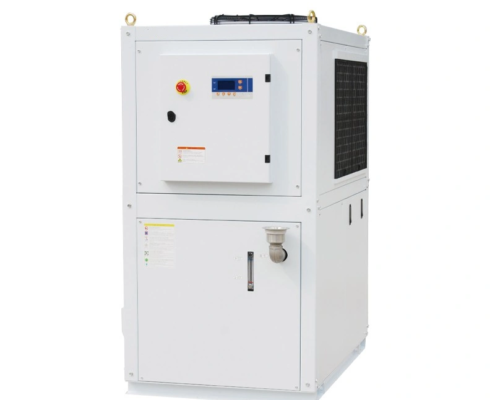

KCLD 3.7-15P Water Chiller

Specification & Technical Parameters:

Model			KCLD-3.7P	KCLD-5P	KCLD-6P	KCLD-8P	KCLD-10P	KCLD-12P	KCLD-15P
Cooling capacity		kcal/h	8000	12000	15000	18000	25000	30000	40000
		W	9300	14000	17400	20900	29000	35000	46500
water temperature range		℃	Temperature-fixed type: 15~30℃; Room temperature synchronized type: Room temperature ±△T (△T=1~3℃)
Ambient temperature		℃	5~43
Types of cooling water		–	Clean water, purified water, tap water, mixed water (containing preservatives and additives)
Main power supply		V	3PH/AC380V±10%/50Hz
Total power		kW	4.2	5.7	7.1	8.3	11.5	13.5	16.5
Total current		A	9.1	11.6	12.5	14.7	23.8	24.9	32
water pump flow rate		L/min	27	40	50	60	80	100	140
Water pump head		m	25	25	25	25	25	25	25
Water tank capacity		L	100	100	120	120	200	210	250
Interface dimensions (internal thread)		inch	G1″	G1″	G1¹/₄“	G1¹/₄“	G1¹/₄“	G1¹/₂“	G1¹/₂“
External dimensions	Width	mm	750	750	800	800	930	980	1020
	thick	mm	800	800	850	850	970	1050	1200
	high	mm	1430	1430	1500	1580	1780	1830	1960
weight		kg	150	180	220	280	350	400	530
refrigerant		R410A
Security Protection		Refrigerant high/low voltage protection, overload/short circuit/delay protection, power phase loss/reverse phase protection, and freeze protection.

Notes:

• Cooling capacity refers to the cooling output at an ambient temperature of 35℃ and an outlet water temperature of 25℃;
• The lower limit temperature for both the temperature-fixed and room-temperature-adjustable types is 15℃;
• When installing the chiller, a space of at least 80cm should be reserved at the air inlet, and a space of at least 200cm should be reserved at the air outlet;
• Our products are constantly being improved, and the specific structural dimensions may differ from the parameters above;
• The specifications listed in the parameter table are common models. Our company accepts special orders from customers.
