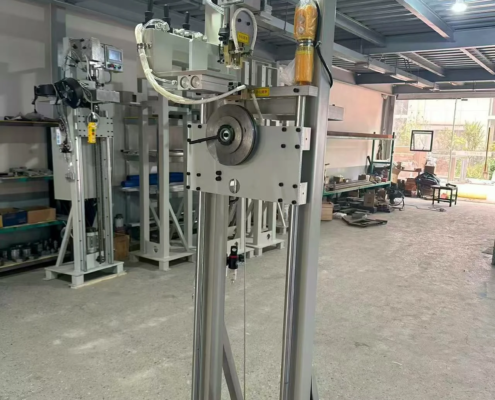

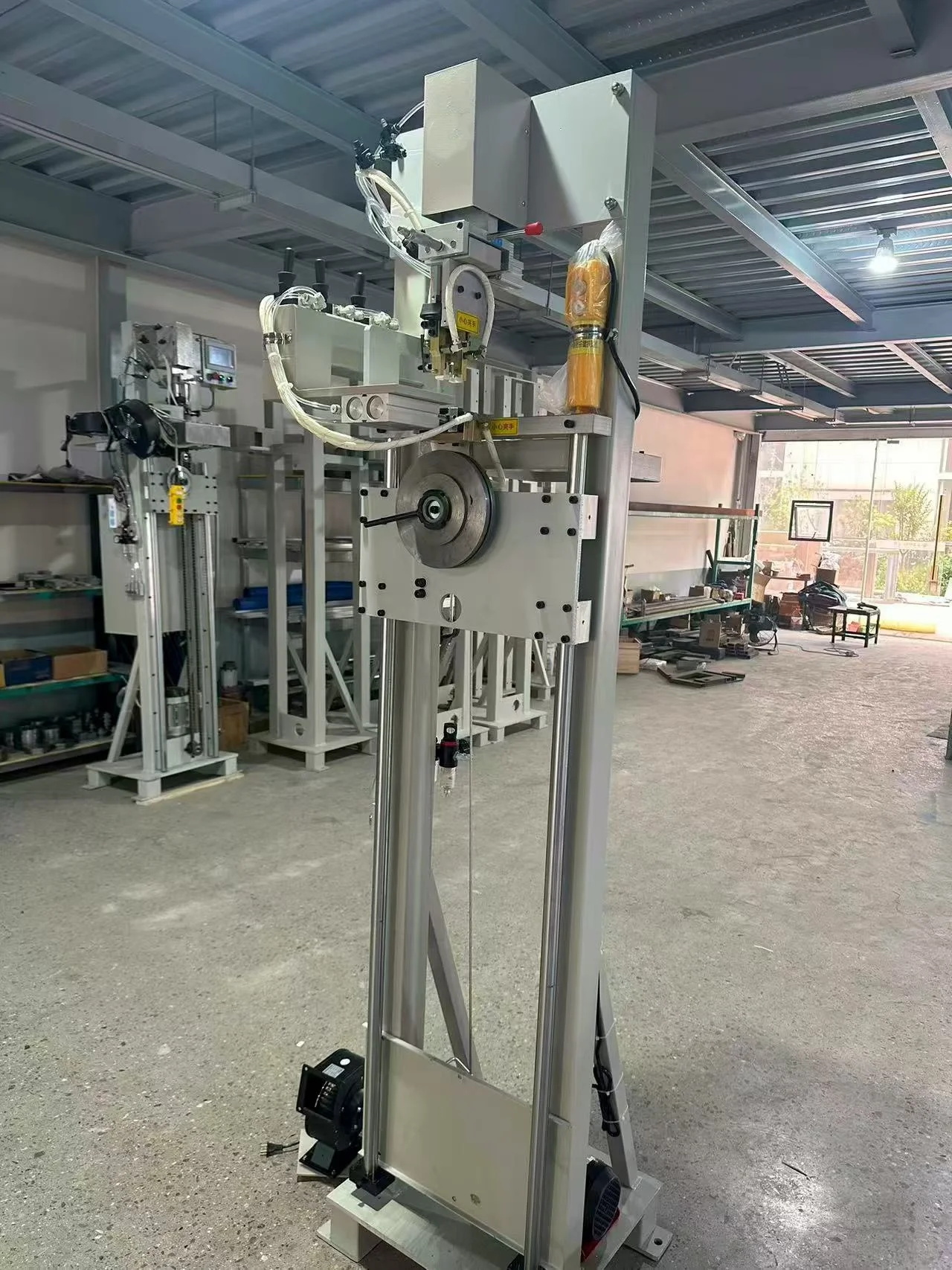

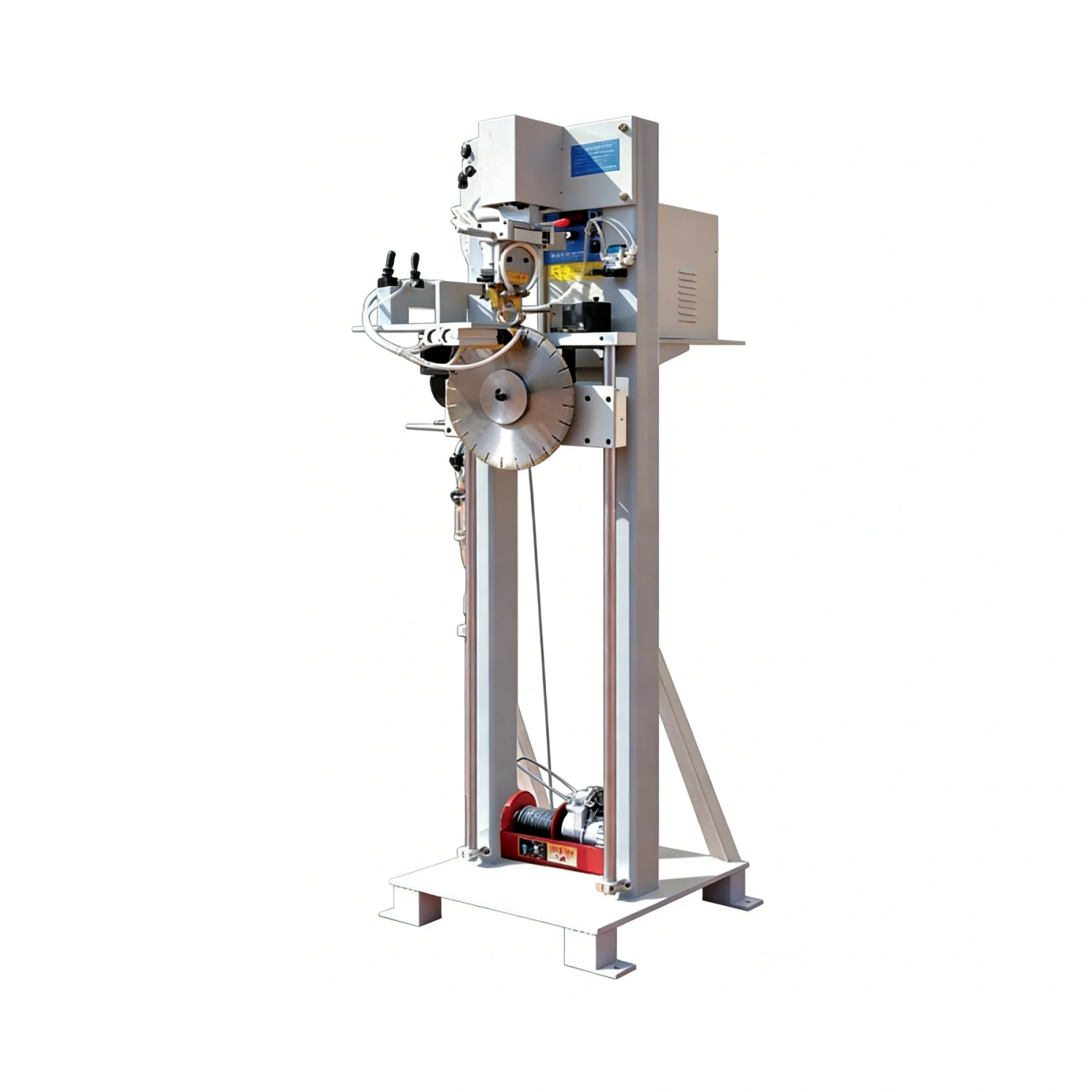

NSBF-2200MM Pneumatic Diamond Saw Blade Segment Welding Frame
Three pneumatic valves control the lifting and lowering of the saw head, saw blade, and saw head respectively.
Double cylinder clamping ensures the welding accuracy of the segment
Double cylinder clamping prevents the saw blade welding process stress damage
Product Details
Main Features:
- Three pneumatic valves control the lifting and lowering of the saw head, saw blade, and saw head respectively.
- Double cylinder clamping ensures the weldingaccuracy of the segment
- Double cylinder clamping prevents the saw blade welding process stress damage
- The segmentspart adopts mechanical geometric alignment to ensure precise saw blade welding.
- Safe and simple operation,basic training is sufficient for general workers.
- Our factory can customize welding frames of various specifications and styles according to customer needs.
Equipment Parameter:
| Model | NSBF-2200 |
| Scope of application | Φ350-2200MM infrared saw blade/single blade saw/combination saw/tower saw blade segment |
| Welding accuracy | ±0.03mm |
| Welding diameter in horizontal position | 1600mm |
| Equipment power | 1.5KW |
| Water source requirement | ≥0.3Mpa, 2-5L/min |
| Ar source requirement | 0.6-0.8 MPa |
| Equipment Size | L800*W780*H2200mm |
| Equipment net weight | 185KG |
