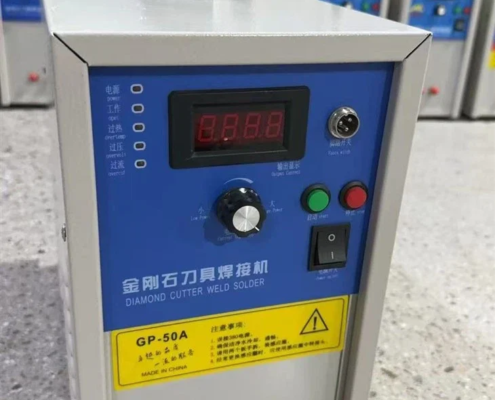

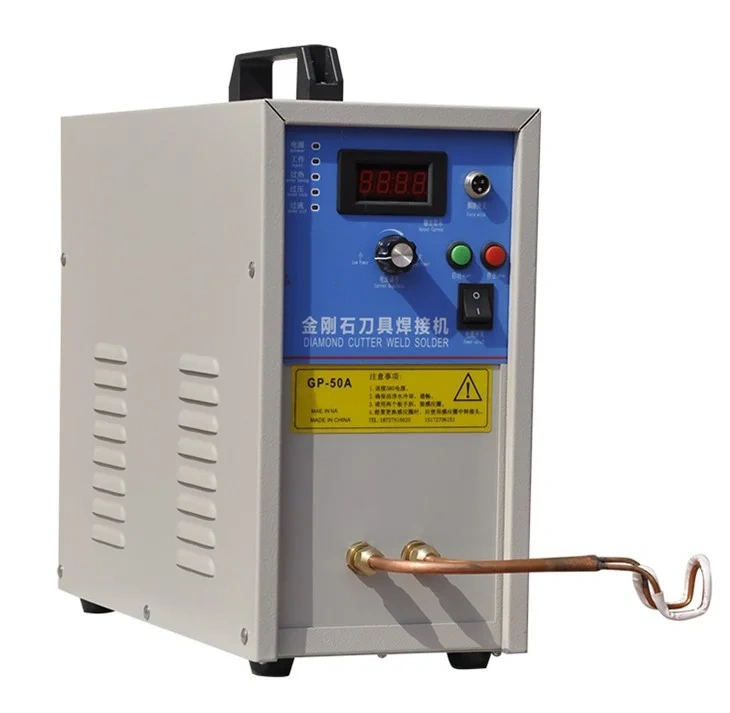

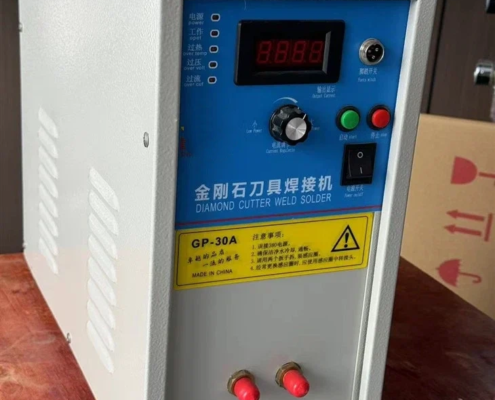

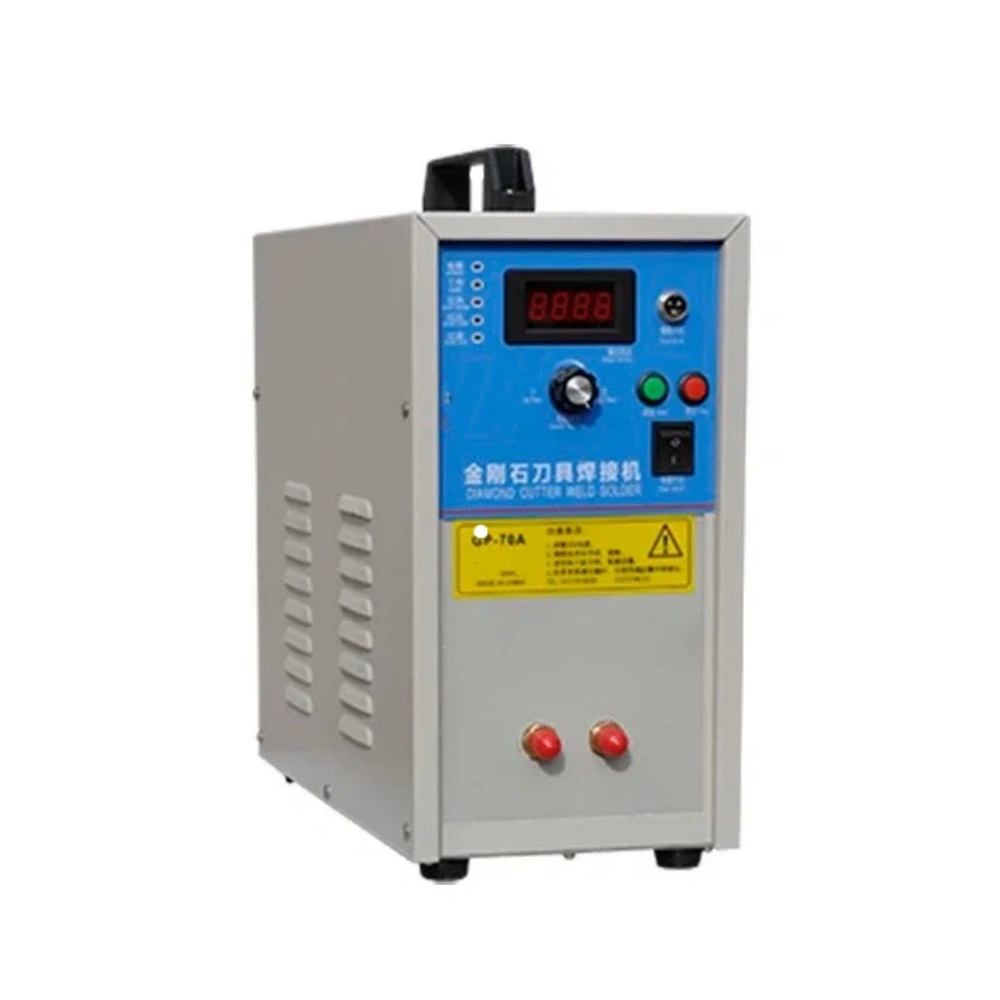

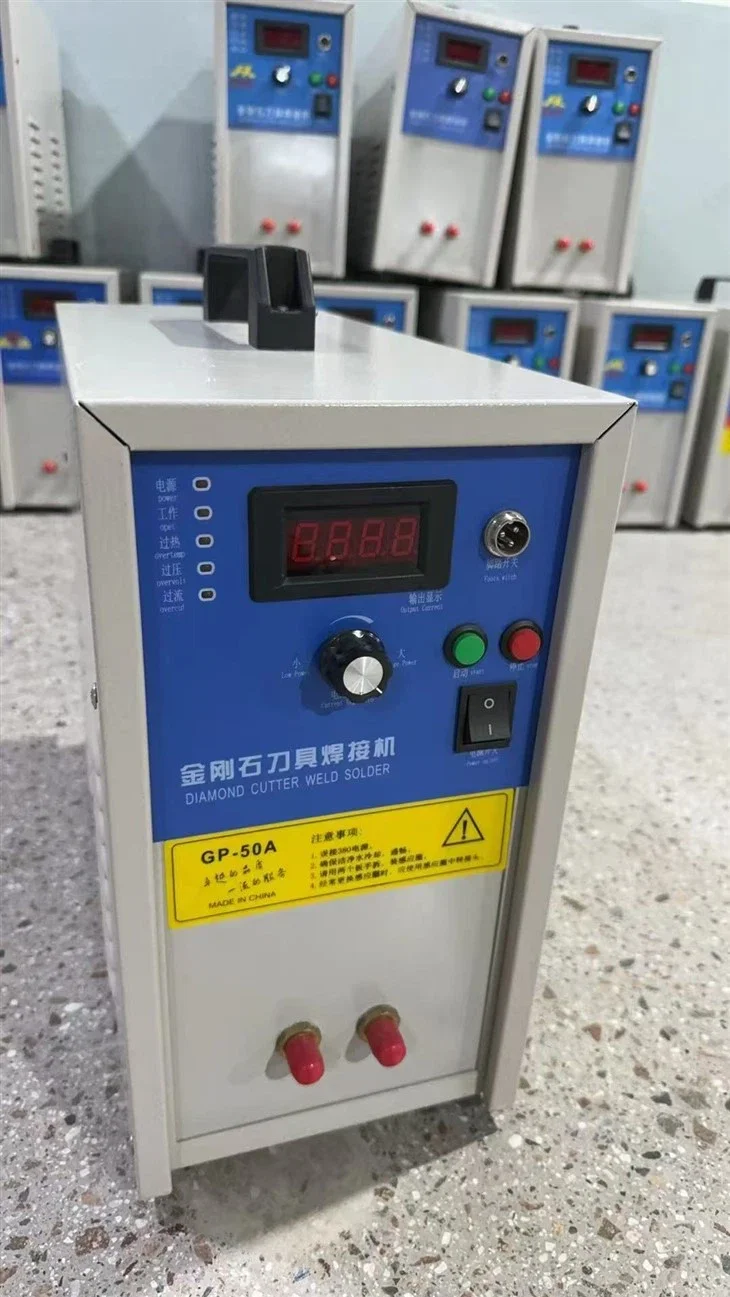

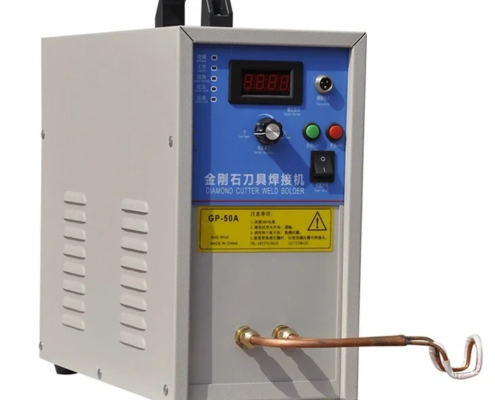

Diamond Tool Brazing Machine (GP-30/40/50/60/65/70A)
Portable blade brazing machine is a compact and versatile device designed to facilitate the brazing process for circular saw blades and other cutting tools. It allows for the on-site repair, customization, or manufacturing of blades by securely bonding diamond segments or tips onto the saw blade. Design with a 100% load, continuously 24 hours a day, can be equipped with infrared temperature measurement, automatic temperature control, improve the heating quality and simplify the manual operation.
Product Details
Main Features:
- Suitable for welding various specifications of diamond saw bladesegments, drilling and cutting blades, grinding wheels, floor grinding discsegments, carbide cutting tools, and heat treatment of various hardware and mechanical parts.
- AC220V power supply,high-power design for fast heating.
- Imported components for key parts, high temperature and high pressure resistant, extremely low failure rate.
- Adopting Powder-coated shell, corrosion resistant, effectively insulated, and anti-static.
- 100% full load design, capable ofwork continuously for 24 hours.

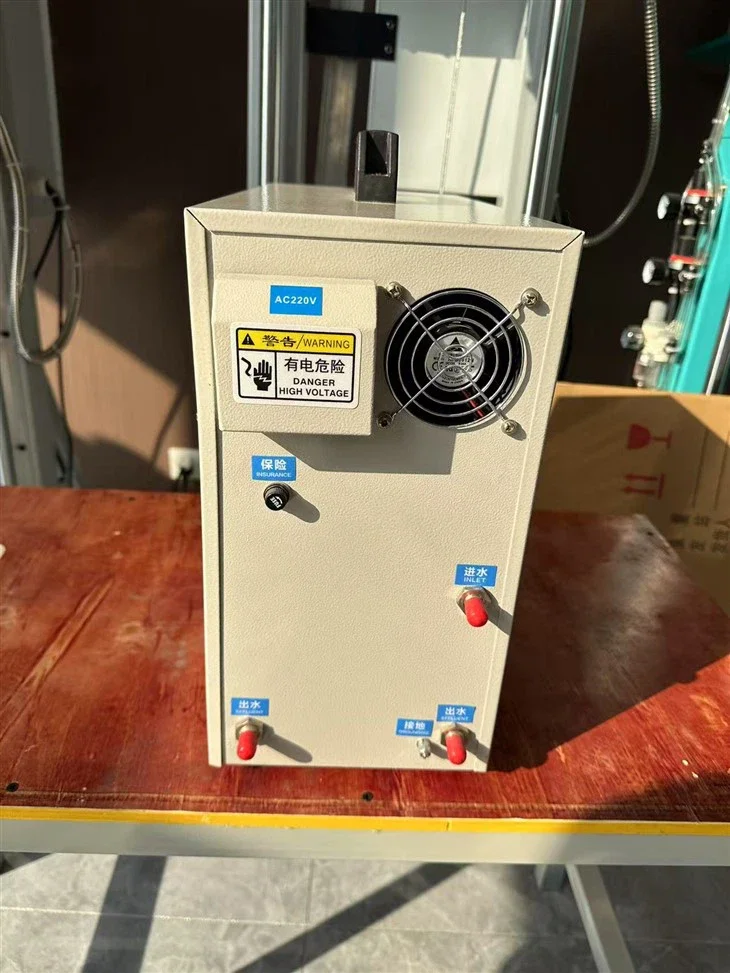

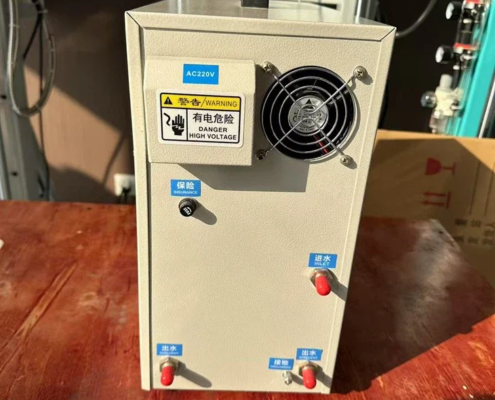

- Simple installation:Simply connect to water and electricity, no professional installation required.
Note: Our factory can provide customized brazing machine solutions according to your specific requirements.
Equipment Parameter:
| Model | GP-30A | GP-40A | GP-50A | GP-60A | GP-65A | GP-70A |
| Voltage | 220V/50HZ | |||||
| Input voltage | AC210-230V | |||||
| Input oscillation current | 300-1200A | 300-1350A | 300-1500A | 300-1600A | 300-1700A | 500-1800A |
| Maximum Input Power | 6.6KW | 9KW | 11KW | 12KW | 14KW | 15KW |
| Cable requirements | 2.5-square-millimeter copper wire | 4-square-millimeter copper wire | 6-square-millimeter copper wire | 8-square-millimeter copper wire | 12-square-millimeter copper wire | The single copper wire of the cable should be no less than 12 square millimeters, and the circuit breaker should be no less than 80A |
| Water source requirements | Two-inlet and two-outlet; water pressure≥0.3Mpa,fiow rate≥1.8 m³/h | |||||
| Overheat protection temperature (OHP) | 60℃ | |||||
| Equipment Size | L475*W200*H420mm | |||||
| Net Weight | 21KG | |||||
Application：
1. Metal tube welding: such as copper tube, steel tube, and aluminum tube’s butt welding, plug welding and welding sets.
2. Alloy cutter welding: such as alloy turning, milling cutter, planer, saw blades, reamer, boring knife.
3. Carbide saw blade welding: Diamond saw blade welding, marble saw blade welding, woodworking saw blade welding. Cut grass piece of welding, cut aluminum welding
4. Metal welding: towel rack, soap nets, towel holder, auto-accessories, metal terminals, hardware pieces, electric heating tube parts and fasteners.
5. Customized service: make machine according to customers’ actual working situation.
6. Diamond saw blade welding machine
