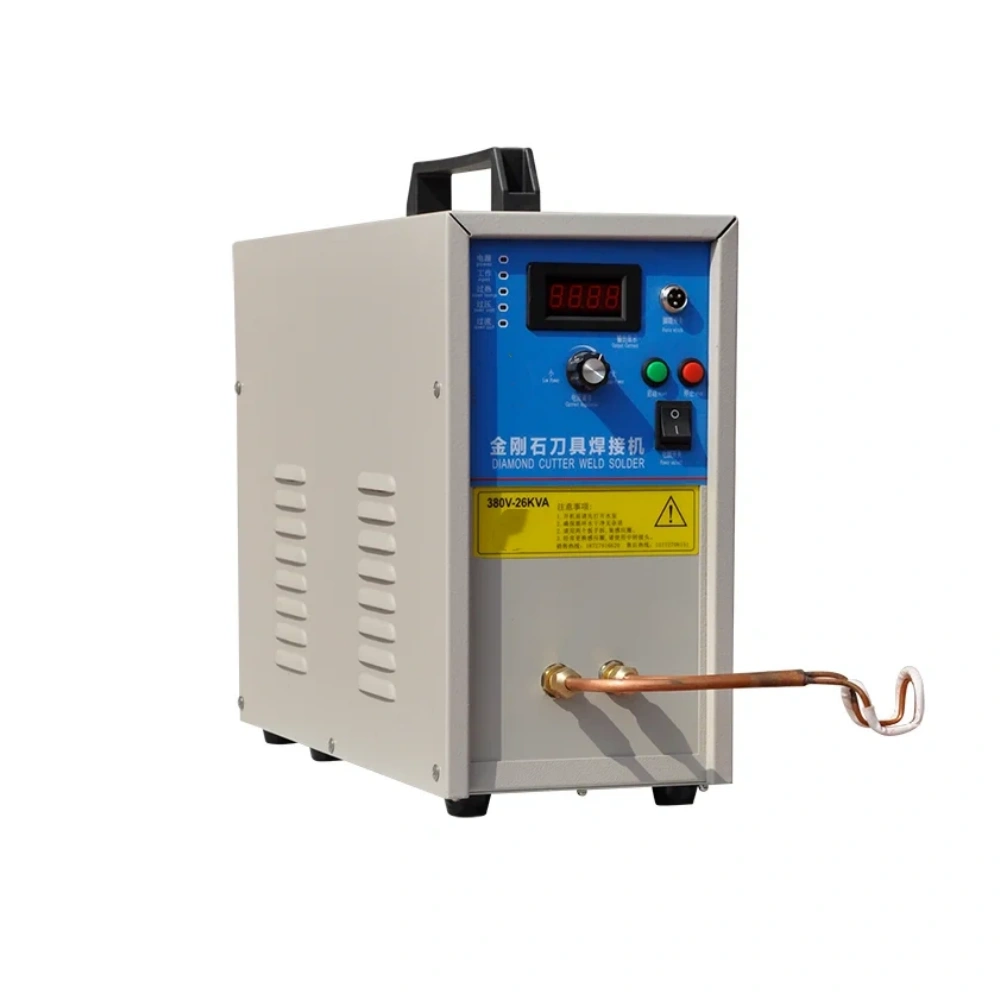

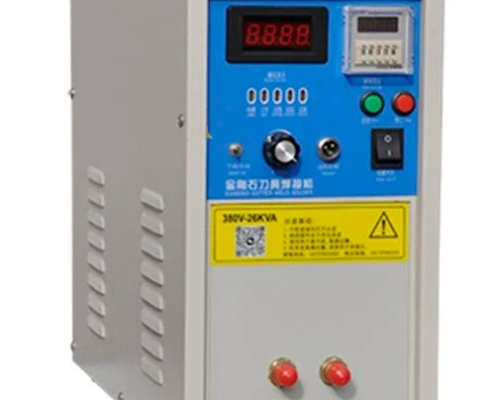

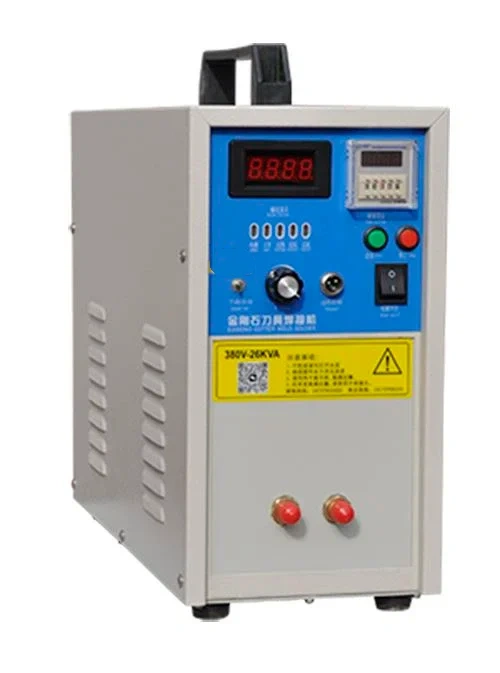

Diamond Tool Brazing Machine with Timer (GP-26KVA)
- IGBT solid state inversion technology based.
- Phase locking technology realizes powers & frequency tracking automatically.
- Perfect protective circuit and cooling system (water and air) design, which ensure the good reliability of machine.
Product Details
Main Features:
- Suitable for welding various specifications of diamond saw bladesegments, drilling and cutting blades, grinding wheels, floor grinding discsegments, carbide cutting tools, and heat treatment of various hardware and mechanical parts.
- AC380V power supply,high-power design for fast heating.
- Stable, efficient, environmentally friendly and energy-savingoperation with balanced power grid voltage;
- Imported components for key parts, high temperature and high pressure resistant, extremely low failure rate.
- Adopting Powder-coated shell, corrosion resistant, effectively insulated, and anti-static.
- 100% full load design, capable ofwork continuously for 24 hours.
- The timer function ranges from 1 to 99 seconds and can be switched between manual and automatic modes.
- Simple installation:Simply connect to water and electricity, no professional installation required.
Note: Our factory can provide customized brazing machine solutions according to your specific requirements.
Equipment Parameter:
| Model | GP-26KVA (WITH/WITHOUT TIMER) |
| Voltage | 380V 50HZ |
| Input voltage | 350-430V |
| Input oscillation current | 500-1800A |
| Input power | 26KW |
| Cable requirements | The copper wire of the cable should be no less than 8 square meters per strand, and the circuit breaker should be no less than 100A |
| Water source requirements | Two-inlet and two-outlet; water pressure ≥ 0.3 Mpa, flow rate ≥ 1.8 m³/h |
| Equipment Size | L520*W200*H420mm |
| Net weight of equipment | 25KG |
Main Parts Introduction：
- Germany SIEMENS INFINEON IGBT Module. (30-100KHZ oscillation frequency, fast response time, super-highstability, almost spatter-free welding)
- Japan Nichicon electrolytic capacitor. (filter capacitor)
- Imported transistor integrated block.
- All water pipe use thermostatically, High pressure resistance best quality material.
- Main card, signal circuit, drive circuit board, control circuit board and component.
- Are adopted: Toshiba, Hitachi, Motorola, China’s top manufacturers.
- International advanced all-solid-state semiconductor power devices.
- Technical advantage: perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection, clear and accuracy data display and etc.
- Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency.
