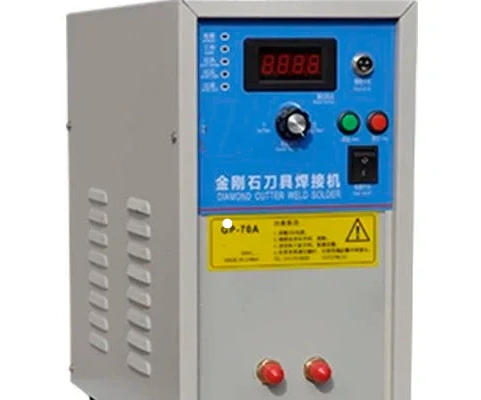

Diamond Tool Brazing Machine (GP-70A)
Portable blade brazing machine is a compact and versatile device designed to facilitate the brazing process for circular saw blades and other cutting tools. It allows for the on-site repair, customization, or manufacturing of blades by securely bonding diamond segments or tips onto the saw blade.
Product Details
Main Features:
- Suitable for welding various specifications of diamond saw bladesegments, drilling and cutting blades, grinding wheels, floor grinding discsegments, carbide cutting tools, and heat treatment of various hardware and mechanical parts.
- AC220V power supply,high-power design for fast heating.
- Imported components for key parts, high temperature and high pressure resistant, extremely low failure rate.
- Adopting Powder-coated shell, corrosion resistant, effectively insulated, and anti-static.
- 100% full load design, capable ofwork continuously for 24 hours.
- Simple installation:Simply connect to water and electricity, no professional installation required.
Note: Our factory can provide customized brazing machine solutions according to your specific requirements.
Equipment Parameter:
| Model | GP-70A |
| Voltage | 220V 50-60HZ |
| Input voltage | AC210-230V |
| Input oscillation current | 500-1800A |
| Input Power | 15KW |
| Cable requirements | The single copper wire of the cable should be no less than 12 square millimeters, and the circuit breaker should be no less than 80A |
| Water source requirements | Two-inlet and two-outlet; water pressure≥0.3Mpa,fiow rate≥1.8 m³/h |
| Equipment Size | L475*W200*H420mm |
| Net Weight | 23KG |
